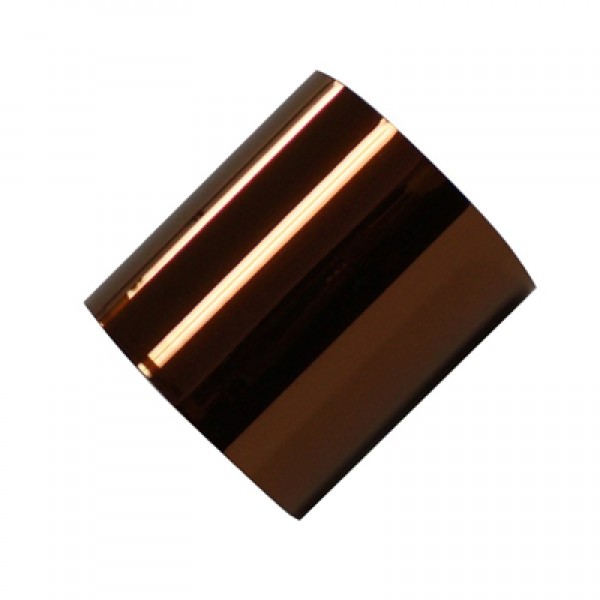

ESD Polyimide Tape EKPT-100

Product Code: EKPT-100

Product Size: 100mm x 33m

Description:


ESD Polyimide Tapes are made of 1 mil thick Polyimide film backed by 1.5 mil silicone adhesive with an Electro-static dissipative (ESD) properties to reduce the static charge. The silicone adhesive leaves no residue. Total thickness of this product is 2.5 mil.They can withstand temperatures of up to 260 degrees C (500 degrees F). Tape size range: W(1~1200)mm x L(33) meters,Custom sizes are available upon request.

Applications: 3D Printing, Aerospace Assembly, Automotive Facilities, Electronic Assembly, Fiber Optics Manufacturing and Solar Panels.


Technical Data Sheet:


 Part Number

 EKPT Series

 Peel Strength

 500±100

 Color

 Amber

 Tensile Strength

 20 lb/in² min

 Film Thickness

 1.0 Mil

 Elongation

 >50%

 Adhesive Thickness

 1.5 Mil

 Flammability Rating

 UL-94- V-0

 Total Thickness

 2.5 Mil

 Dielectric Strength

 800 Volts

 Material Type

 Polyimide

 Surface resistance

 10E6 ~10E8Ohms/ sq

 Standards

 ASTM D3652,D3330

 Temperature Resistance

 260(500°F)



Standard Size:



 EKPT-03
 ESD Polyimide tape  - 3mm x 33m
 EKPT-05
 ESD Polyimide tape  - 5mm x 33m
 EKPT-06
 ESD Polyimide tape  - 6mm x 33m
 EKPT-08
 ESD Polyimide tape  - 8mm x 33m
 EKPT-10
 ESD Polyimide tape  - 10mm x 33m
 EKPT-12
 ESD Polyimide tape  - 12mm x 33m
 EKPT-15
 ESD Polyimide tape  - 15mm x 33m
 EKPT-19
 ESD Polyimide tape  - 19mm x 33m
 EKPT-20
 ESD Polyimide tape  - 20mm x 33m
 EKPT-25
 ESD Polyimide tape  - 25mm x 33m
 EKPT-32
 ESD Polyimide tape  - 32mm x 33m
 EKPT-38
 ESD Polyimide tape  - 38mm x 33m
 EKPT-44
 ESD Polyimide tape  - 44mm x 33m
 EKPT-50
 ESD Polyimide tape  - 50mm x 33m
 EKPT-64
 ESD Polyimide tape  - 64mm x 33m
 EKPT-76
 ESD Polyimide tape  - 76mm x 33m
 EKPT-100
 ESD Polyimide tape  - 100mm x 33m
 EKPT-127
 ESD Polyimide tape  - 127mm x 33m
 EKPT-140
 ESD Polyimide tape  - 140mm x 33m
 EKPT-152
 ESD Polyimide tape  - 152mm x 33m
 EKPT-178
 ESD Polyimide tape  - 178mm x 33m
 EKPT-204
 ESD Polyimide tape  - 204mm x 33m
