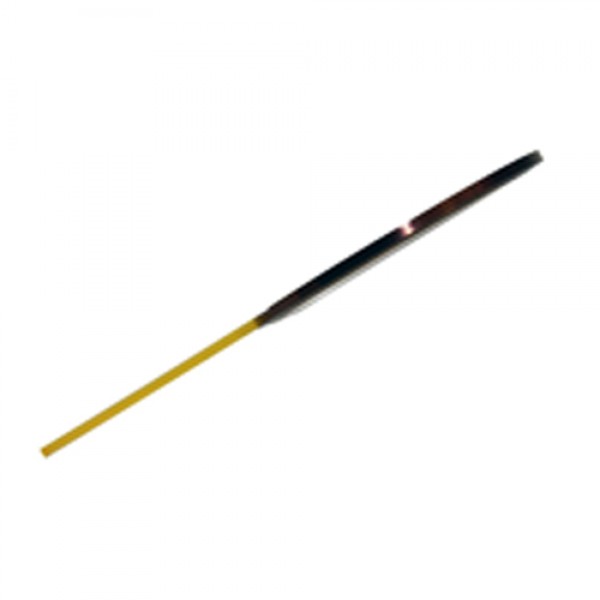

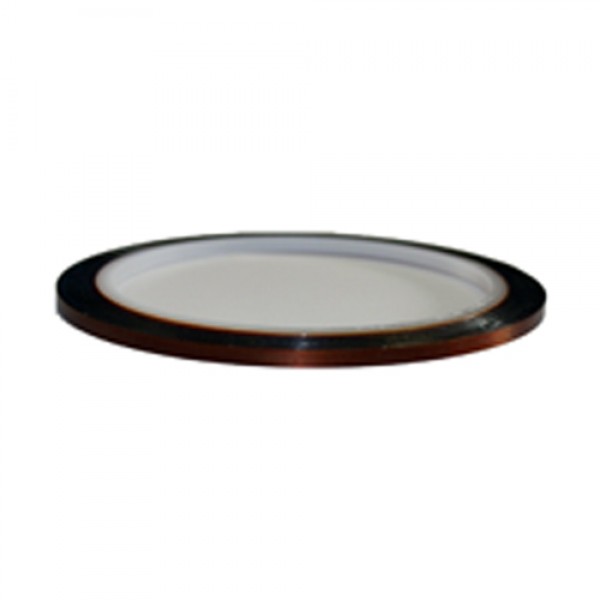

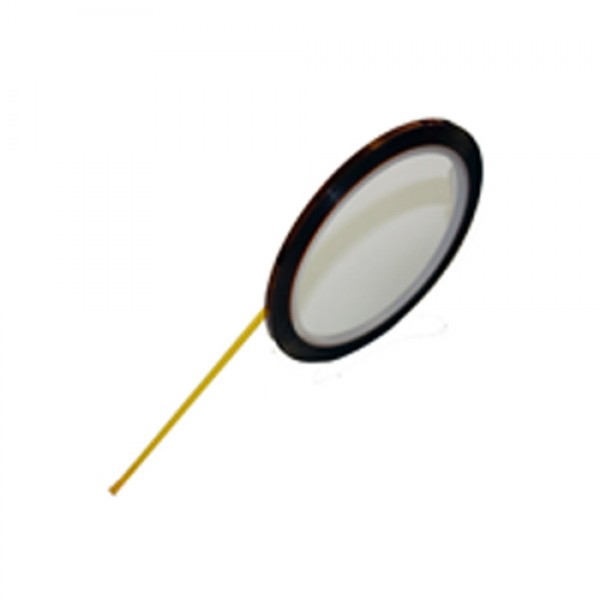

2 Mil Polyimide Tape KPT2-03

Description:

2 Mil Polyimide Tape is developed by Polyimide film with silicone adhesive. Polyimide films shows excellent electrical insulation properties, high temperature resistant, and excellent solvent resistant. Polyimide tape combines excellent physical, electrical, and mechanical properties, and has been used in applications at temperatures as low as -269°C (-452°F) and as high as 260°C (500°F)

Applications: 3D Printing, Aerospace Assembly, Automotive Facilities, Electronic Assembly, Fiber Optics Manufacturing and Solar Panels.

Technical Data Sheet:

Color	Amber
Adhesion type	Silicone
Backing material	Polyimide film
Film Thickness	2 Mil	ASTM D  3652
Adhesive Thickness	1.5 Mil
Total Thickness	3.5 Mil
Adhesion to steel	30oz/inch	ASTM D  3330
Tensile Strength	50(1bs/inch)	ASTM D  3759
Elongation	>50%	ASTM D  3759
Dielectric Strength	11,000 volts
UL-94 Flammability Rating	V-0
Insulation Resistance	1,000,000 mega ohms
Electrolytic Corrosion Factor	1
Insulation Class,Centigrade	180℃
Temperature Resistance	260℃(500°F)
Tape size range	W(1~500)mm x L(33) meters

Standard Size:

KPT2-03	2 Mil Polyimide tape  - 3mm x 33m
KPT2-05	2 Mil Polyimide tape  - 5mm x 33m
KPT2-06	2 Mil Polyimide tape  - 6mm x 33m
KPT2-08	2 Mil Polyimide tape  - 8mm x 33m
KPT2-10	2 Mil Polyimide tape  - 10mm x 33m
KPT2-12	2 Mil Polyimide tape  - 12mm x 33m
KPT2-15	2 Mil Polyimide tape  - 15mm x 33m
KPT2-19	2 Mil Polyimide tape  - 19mm x 33m
KPT2-20	2 Mil Polyimide tape  - 20mm x 33m
KPT2-25	2 Mil Polyimide tape  - 25mm x 33m
KPT2-32	2 Mil Polyimide tape  - 32mm x 33m
KPT2-38	2 Mil Polyimide tape  - 38mm x 33m
KPT2-44	2 Mil Polyimide tape  - 44mm x 33m
KPT2-50	2 Mil Polyimide tape  - 50mm x 33m
KPT2-64	2 Mil Polyimide tape  - 64mm x 33m
KPT2-76	2 Mil Polyimide tape  - 76mm x 33m
KPT2-100	2 Mil Polyimide tape  - 100mm x 33m
KPT2-127	2 Mil Polyimide tape  - 127mm x 33m
KPT2-140	2 Mil Polyimide tape  - 140mm x 33m
KPT2-152	2 Mil Polyimide tape  - 152mm x 33m
KPT2-178	2 Mil Polyimide tape  - 178mm x 33m
KPT2-204	2 Mil Polyimide tape  - 204mm x 33m
