Copper Conductive Tapes

Home Tapes Conductive Tapes Copper Conductive Tapes

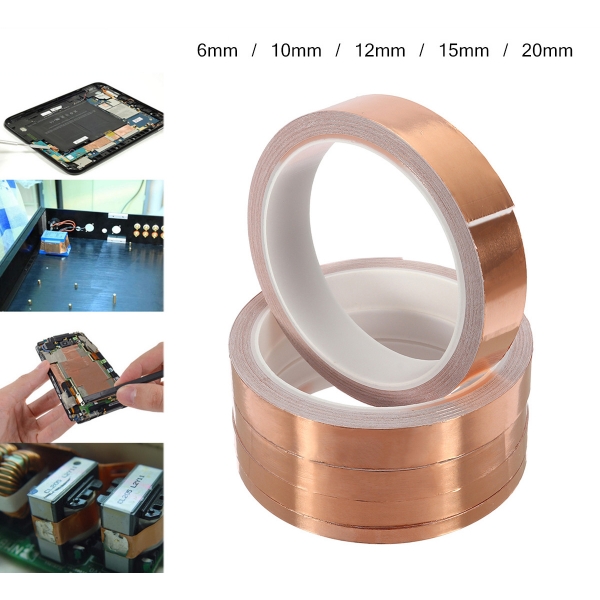

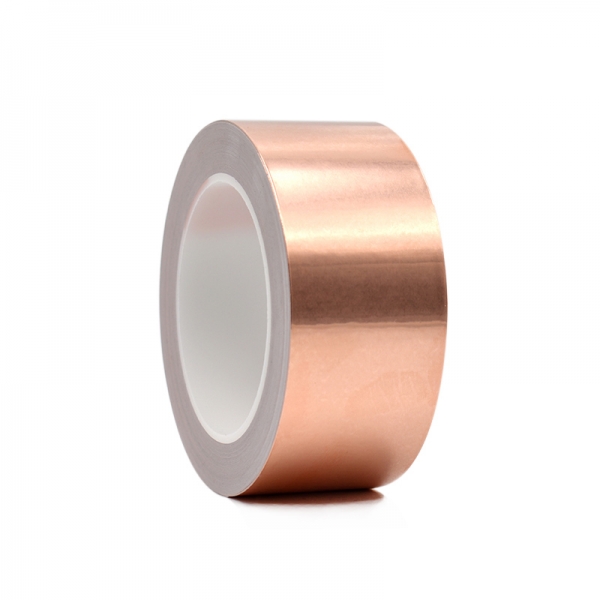

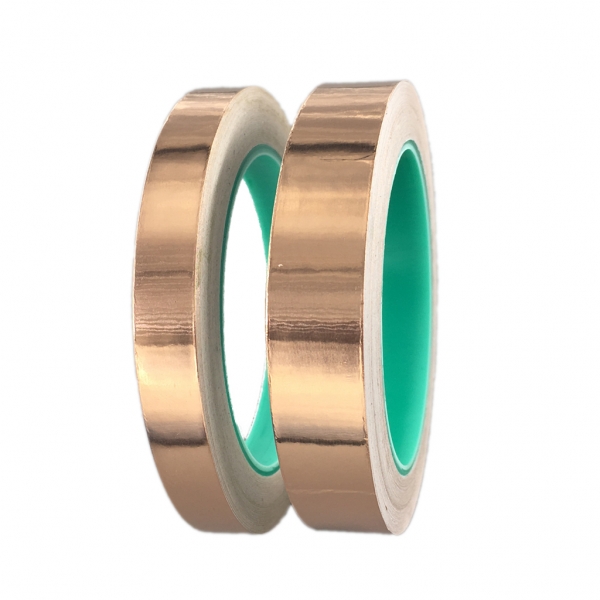

Copper Conductive Tape COT-12

Product Code: COT-12

Product Size: 12mm x 50m

Description:


Copper Tapes are also known as EMI or RFI Shielding Tapes. They are made from thin copper foil with an acrylic conductive adhesive. These conductive tapes are packaged on a paper liner on a 3" core for easy handling and cutting. The Copper tapes provide a very low rate of electrical resistance. They are used for building ground systems, static charge draining, cable wrapping and surface contact to non-solderable material and point to point electrical contact. Tape Size range:W(1~1200)mm x L(50) meters,Custom sizes are available upon request


 Applications: 3D Printing, Aerospace Assembly, Automotive Facilities, Electronic Assembly, Fiber Optics Manufacturing and Solar Panels.


Technical Data Sheet:


 Part Number

 COT Series

 Electrical resistance

 10E3 ~10E5 Ohms/ sq

 Color

 Copper

 Adhesion Strength

 >35 oz/in

 Total Thickness

 2.7Mil

 Breaking Strength

 25 lbs/in

 Adhesive type

 Conductive Acrylic

 Acrylic Shielding Effectiveness

 >85 db

 Elongation

 50%

 Static decay

 0.5 Seconds

 Material type

 Copper film

 Temperature Range

 -40°C to 130°C

 Standards

 MIL STD 202,D3330

 HS code

 3919109900




Standard Size:


 COT-06  Copper Conductive tape - 6mm x 50m
 COT-10

 Copper Conductive tape - 10mm x 50m

 COT-12  Copper Conductive tape - 12mm x 50m

 COT-19

 Copper Conductive tape - 19mm x 50m

 COT-25

 Copper Conductive tape - 25mm x 50m

 COT-50

 Copper Conductive tape - 50mm x 50m

 COT-76

 Copper Conductive tape - 76mm x 50m

 COT-100

 Copper Conductive tape - 100mm x 50m
