Glass Cloth Tapes

Home Tapes Glass Cloth Tapes

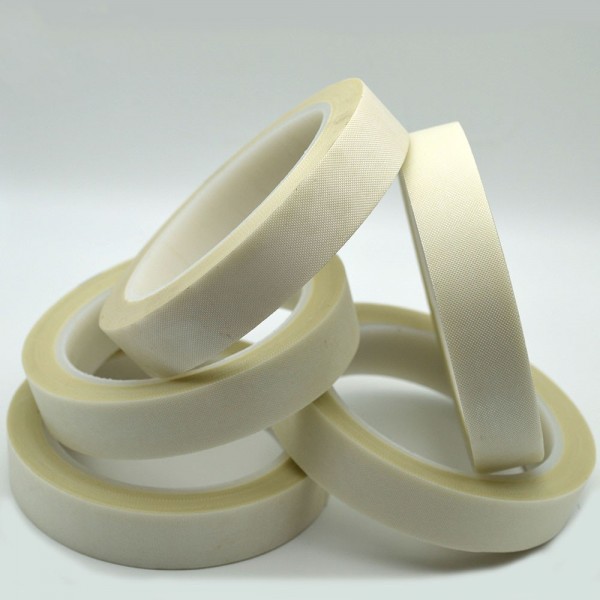

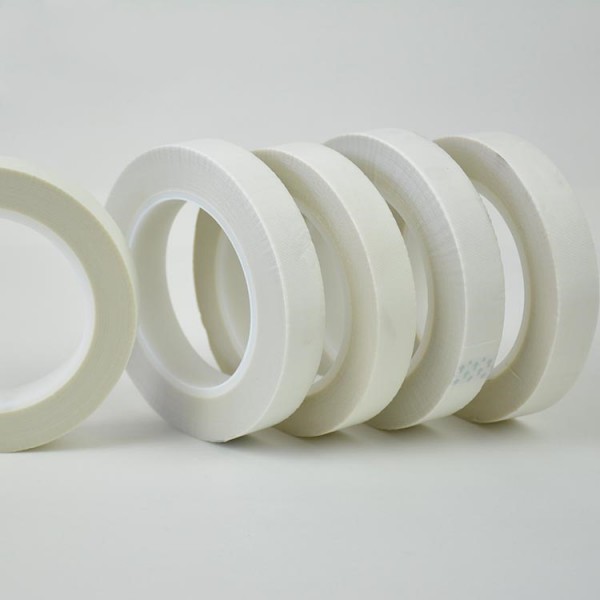

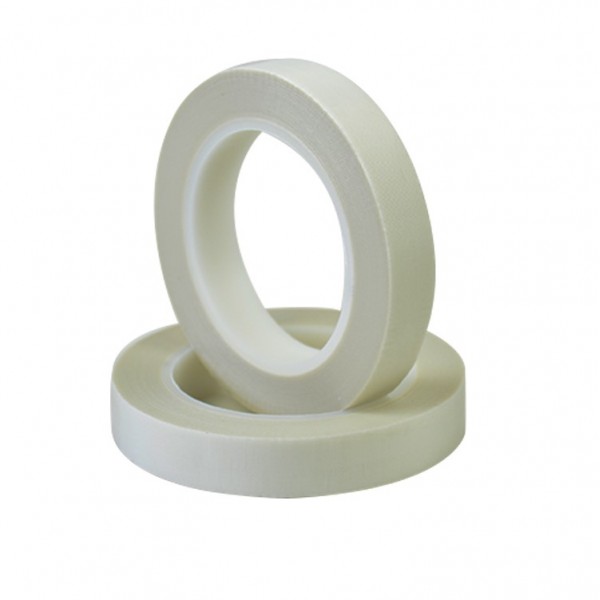

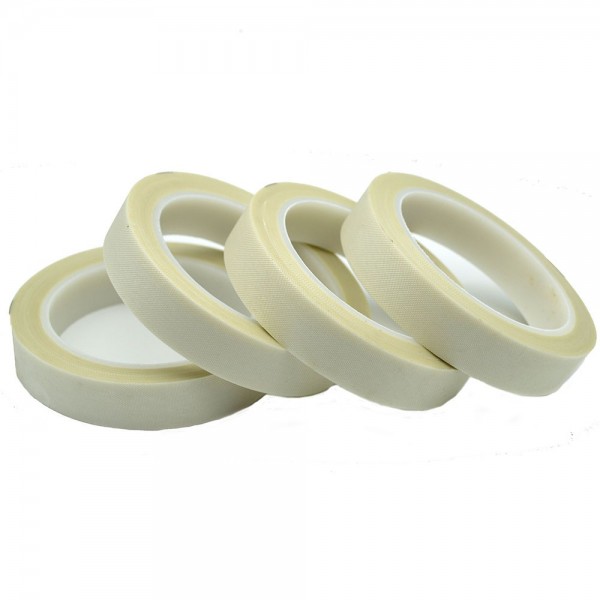

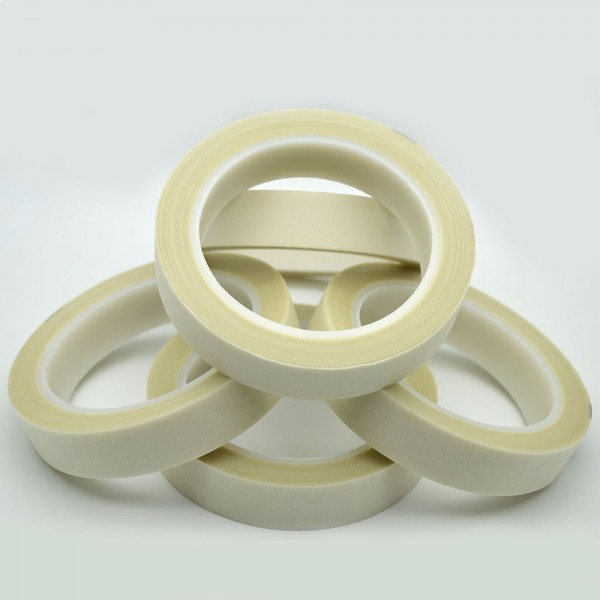

Glass Cloth Tape GCT-20

Product Code: GCT-20

Product Size: 20mm x 33m

Description:


This tape is with glass cloth as the basic carrier, and coated with silicone adhesive,and the total thickness is 0.18mmIt features excellent temperature resistance(-50℃260℃),good adhesion and tearing resistance etc. It’s mostly applied for the high strength insulation protection, like the insulation binding(H grade) , various kinds of hot coating masking, and the insulation wrapping of the Li batteries etc. It’s excellent features can replace quite a lot of imported glass cloth tapes, like 3M-69#P212TESA4618 etc. It’s widely used in a lot of high temperature insulation protection places, like air conditional and other electrial appliance, automobiles, digital products etc.



 Applications:  air conditional and other electrial appliance, automobiles, digital products etc.


Technical Data Sheet:


 Part Number

 GCT Series

 Flame resistance

 Excellent

 Color

 White

 Tensile Strength  (N/25mm

 400

 Thickness

 0.13mm

 Elongation

 5%

 Material Type

 Glass Cloth

 Heat Resistance

 200C°C(400°F) Peak Temp.

 Adhesive Type

 Silicone

 Chemical Resistance

 Good

 Standards

 ASTM D3652, D3330

 Voltage resistance (KV

 ≥2




Standard Size:


 GCT-10

 Glass Cloth Tape - 10mm x 33m/66m

 GCT-15

 Glass Cloth Tape - 15mm x 33m/66m

 GCT-18  Glass Cloth Tape - 18mm x 33m/66m

 GCT-20

 Glass Cloth Tape - 20mm x 33m/66m

 GCT-25

 Glass Cloth Tape - 25mm x 33m/66m

 GCT-30

 Glass Cloth Tape - 30mm x 33m/66m

 GCT-35

 Glass Cloth Tape - 35mm x 33m/66m
 GCT-40  Glass Cloth Tape - 40mm x 33m/66m

 GCT-45

 Glass Cloth Tape - 45mm x 33m/66m

 GCT-50

 Glass Cloth Tape - 50mm x 33m/66m

 GCT-100

 Glass Cloth Tape - 100mm x 33m/66m

 GCT-200

 Glass Cloth Tape - 200mm x 33m/66m

 GCT-300

 Glass Cloth Tape - 300mm x 33m/66m

 GCT-400

 Glass Cloth Tape - 400mm x 33m/66m

 GCT-500

 Glass Cloth Tape - 500mm x 33m/66m
